Details

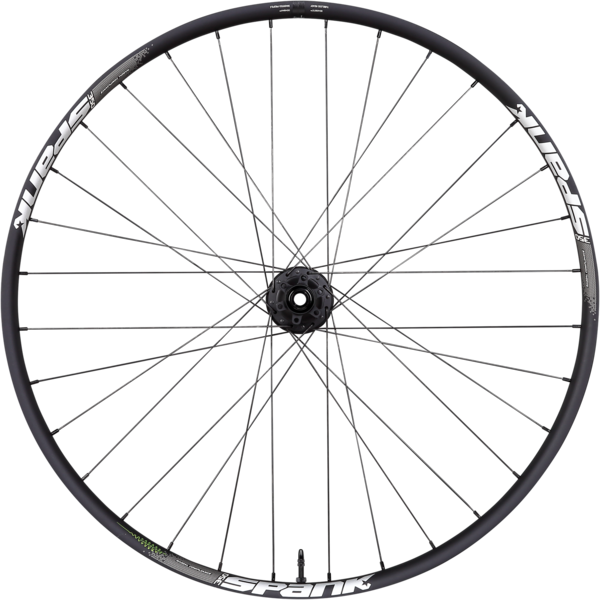

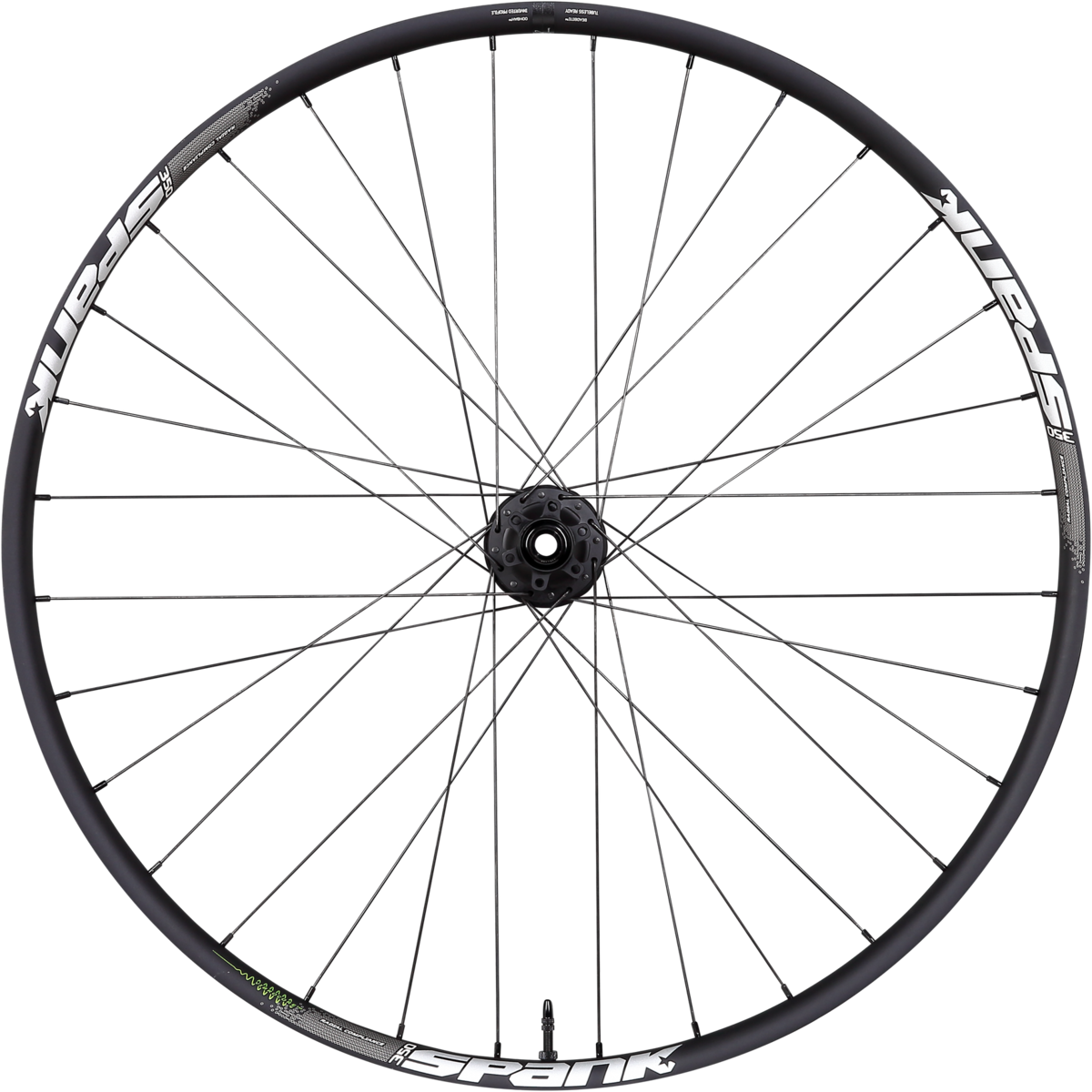

Spank 350 Vibrocore rear wheels are laced to the brand new SPANK HEX Drive Hub, with 102T 6-pawl ratchet offering 3.5 degrees of engagement - that's literally almost instant pick-up. The low profile, radially compliant alloy rim injected with SPANK's award-winning Vibrocore to add torsional strength and lateral stiffness, offers a smooth and highly responsive ride feel. Hand-built to A-Class specifications, the 350 Vibrocore wheels with SPANK Hex Drive hub is the premium offer from the SPANK wheelhouse and is trusted by pros on the UCI DH World Cup and Enduro World Series circuit.
- Unique profile with low sectional height & wide width adds radial compliance & lateral stiffness
- Improved radial compliance for better traction over bumps & chatter while reducing negative feedback to the rider gives enhanced performance & comfort
- Vibrocore™ inner well reduces the transmission of harmful vibration frequencies & increases the fatigue life of the rim
- 30mm internal width is versatile fitting tires from 2" to 2.6" and allows plus-size tire use without negative squaring off of tire profiles
Rim Specifications:
- Hole Count: 32/28
- Inner Width (mm): 30.5
- Outer Width(mm): 35
- Profile Height: 17
- Tyre Fit: 2.0" to 2.6"
32H | 28H | |
---|---|---|
BUILD: | A-Class Handbuilt | A-Class Handbuilt |
HUB: | SPANK HEX J-TYPE | SPANK HEX STRAIGHT PULL |
SPOKES: | J-Hook, tripple butted 2.2/1.8/2.0 | Straightpull, tripple butted 2.2/1.8/2 |
NIPPLES: | Brass external | Alloy external |
LACING: | 3 cross lacing | 3 cross lacing |
VALVE: | F/V Presta | F/V Presta |
TUBELESS: | Tubeless taped & valved | Tubeless taped & valved |
HUB SPECIFICATIONS: | |
---|---|
ENGAGEMENT: | HEX DRIVE 102T / 3.5° / 6 Pawl |
HOLE COUNT: | 32H J-Hook / 28H Straightpull |
DISC MOUNT: | 6-bolt |
MATERIAL: | CNC optimized forged alloy hub body, alloy axle, alloy freehub body |
Videos
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
148 x 12mm / Shimano HG / Black/Silver / 29-inch / 28 | 04710155964732 | C090231RESS320A | |
148 x 12mm / Shimano Micro Spline / Black/Silver / 29-inch / 28 | 04710155969362 | C090231RE3S320A | |
148 x 12mm / SRAM XD / Black/Silver / 29-inch / 28 | 04710155964749 | C090231REXS320A | |
148 x 12mm / Shimano HG / Black/Silver / 29-inch / 32 | 04710155964671 | C090232RESJ220A | 210000057468 |
150 x 12mm / Shimano HG / Black/Silver / 29-inch / 32 | 04710155964695 | C090232RFSJ220A | |
148 x 12mm / Shimano Micro Spline / Black/Silver / 29-inch / 32 | 04710155967481 | C090232RE3J220A | |
150 x 12mm / Shimano Micro Spline / Black/Silver / 29-inch / 32 | 04710155969348 | C090232RF3J220A | |
148 x 12mm / SRAM XD / Black/Silver / 29-inch / 32 | 04710155964688 | C090232REXJ220A | |
150 x 12mm / SRAM XD / Black/Silver / 29-inch / 32 | 04710155964701 | C090232RFXJ220A |
