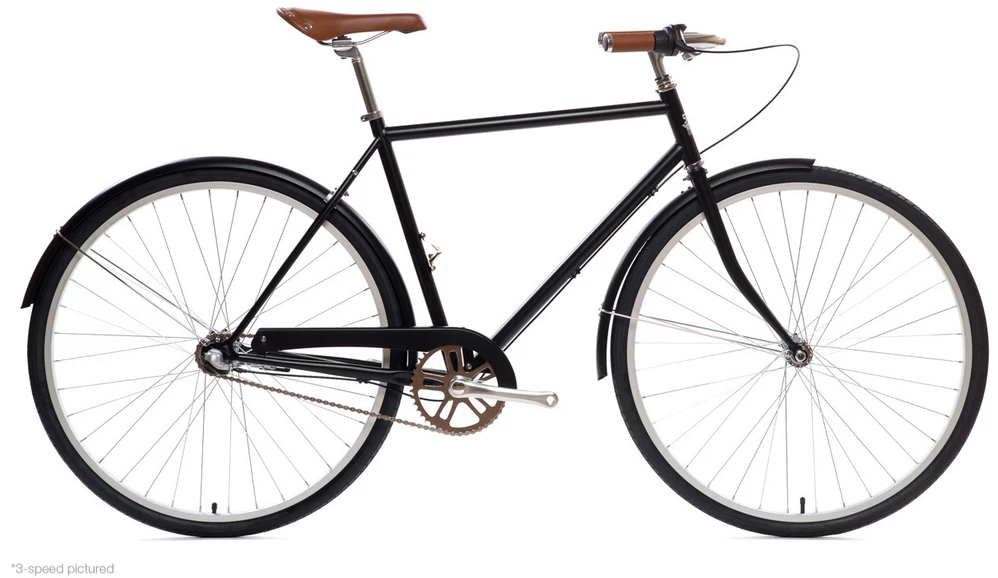

State Bicycle Co. City Bike - The Elliston 3-Speed

State Bicycle Co. City Bike - The Elliston 3-Speed
This item is currently not available.

Details

The City Bike Line is a thoughtfully designed, modern take on a classic style. Commuter-minded features such as fenders and a chain guard not only keep you and your bike clean but also contribute to a classic, refined design that includes a riveted leatherette saddle and retro-inspired metal pedals. Providing comfort without sacrificing style, the mustache-style handlebars outfitted with lock-on leatherette grips keep you in an upright riding position as you coast through the city streets on cushy 35c tires, while a coaster brake provides worry-free stopping power.

bike frame with labeled dimensions
Bike Sizes:
48cm53cm58cm
A. Reach 382mm 389mm 401mm
B. Stack 533mm 543mm 552mm
C. Standover 761mm 789mm 816mm
D. Effective Top Tube 545mm 555cm 570mm
E. Head Tube Angle 70° 70° 70°
F. Head Tube Length 130mm 130mm 140mm
G. Seat Tube Angle 73° 73° 73°
H. Seat Tube Length 480mm 530mm 580mm
I. Bottom Bracket Height 285mm 285mm 285mm
J. Bottom Bracket Drop 60mm 60mm 60mm
K. Fork Rake/Offset 60mm 60mm 60mm
M. Wheelbase 1062mm 1073mm 1088mm
O. Chainstay Length 448mm 448mm 448mm

Specs

Frame Hi Tensile Steel
Fork Hi Tensile Steel, Lugged
Wheels 700c Wheel Set
Hubs 3 Speed Internal, Spacing: F: 100mm / R: 120mm
Tires 700c x 35, Suggested Max Tire: 35mm
Brakes Kick-back Coaster Brake
Handlebars Moustache Handlebars, Width: 560mm
Stem 1" Threaded Quill Stem, Clamp Diameter: 25.4mm, Length: 90mm, Rise: -17°
Headset 1" Threaded
Seatpost Steel, Diameter: 25.4mm
Saddle Leatherette Retro Style
Pedals Retro Style Metal Pedals

* Subject to change without notice.
