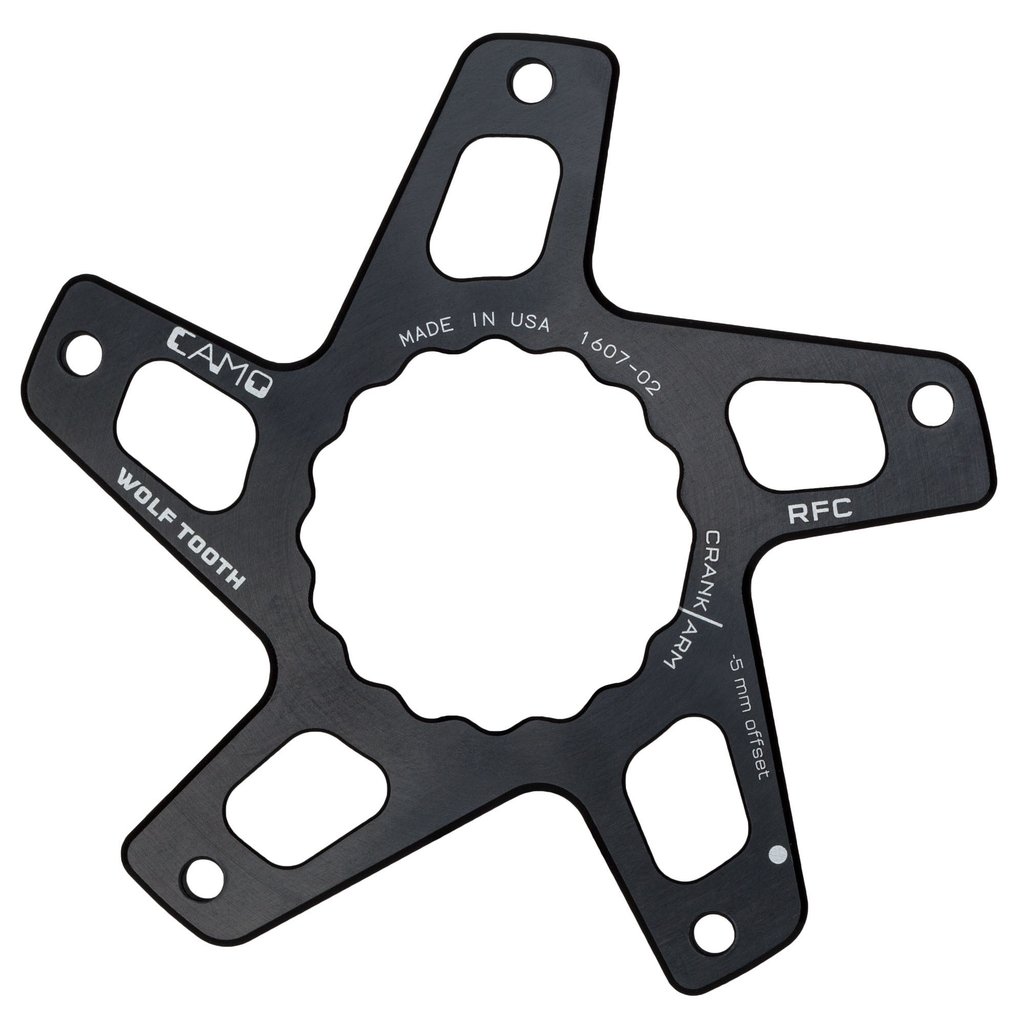

Wolf Tooth CAMO Direct Mount Spider for Race Face Cinch

Wolf Tooth CAMO Direct Mount Spider for Race Face Cinch
  • Offset: M8 Standard for 49mm chainline
  • Offset: M8 Standard for 49mm chainline
  • Offset: M5 Boost for 53mm chainline
  • Offset: M5 Boost for 53mm chainline
  • Offset: P2 Reverse Dish for 58mm chainline
  • Offset: P2 Reverse Dish for 58mm chainline
$29.95
Please select options

Details

Wolf Tooth's CAMO stands for Chainline and Material Optimization. Available in various chainlines and spider configurations, CAMO spiders allow the use of previously unavailable chainring styles, materials, and chainlines in a lightweight, modular, and customizable package. These spiders are for use with the RaceFace cranksets that have removable Cinch spiders/chainrings and are only compatible with CAMO rings and bolts. Three different chainline options are available. The number and letter refer to the mm offset and direction from the mounting face to the centerline of the teeth: - M8 (minus 8mm - dished toward the frame): For 49mm chainline, used with GXP and long-spindle BB30 cranks. Designed for bikes with 135mm QR, 142mm thru axle, and some 148mm bikes. - M5 (minus 5mm - dished toward the frame): For 52mm chainline (Boost) - P2 (plus 2mm - dished outward away from the frame): For fat bikes that have 190/197 rear spacing but use a 100mm-spindle crank

Part Numbers

Option UPC MPN
M5 Boost for 53mm chainline 812719023382 SP-CAMO-RFC-M5
M8 Standard for 49mm chainline 812719023375 SP-CAMO-RFC-M8
P2 Reverse Dish for 58mm chainline 812719023412 SP-CAMO-RFC-P2
